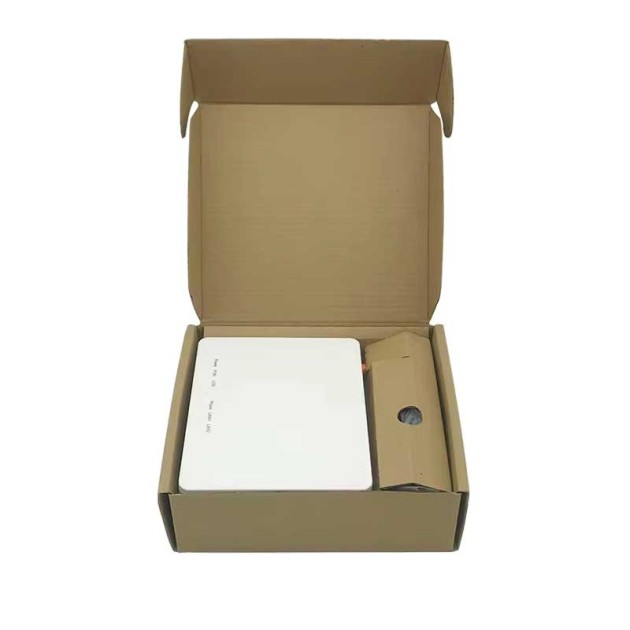

ZXHN F412 v6.0 | EPON | ONT
1x RJ45 1000Mb/s,1x RJ45
$0.00
Price drop reminder
- Product Code: F412-V6.0
- Availability: Ships in 2-3 days
- Sales: 1
-
Promotion：
Up to $110.80 and up to 1 quantity discount $6.93 and give gifts
ONU mode
Light mouth
Total
$0.00
Ship to
United States
| Product Description | |
| Model Number | F412V6.0 |
| Specification | 1GE+1FE+1TEL |
| WIFI signal | NO |
| Wireless gain | NO |
| USB | NO |
| LAN | 1*10/100/1000Mbps active Gigabit ports, full/half duplex, RJ45 interface |
| POT | H248/Sip Voice protocol |
| SUPPORT | PPPOE,Route,Bridge,WAN IP Access,Muti SSID |
| Firmware | English |
| Dimension/weight | 135mm*110mm*30mm/170g |
| Fiber port |
1EPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/UPC/APC Dual mode/Singal mode |
| RX sensitivity | >-28dBm (1490nm) |
| DC power | 12V 0.5A, external AC-DC power adapter |
| Button | Reset,power,WPS,Wireless |
| Operation | Working temperature: -5- +55℃ working humidity:10-90%(non-condensation) |
| Storage | Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation) |
| Feature | |
| 1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required. | |
| 2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati | |
| 3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM. | |
| 4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario. | |
| 5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite. |
