FTTH CATV Receiver Node | Mini Indoor Triplexer with AGC | 1310/1550nm WDM
Compact WDM converter for FTTH networks. Features AGC for stable video signal, plug & play installation. Ideal for CATV signal distribution.
SKU
717331275594
$2.94
Price drop reminder
- Brand: LANGZHI

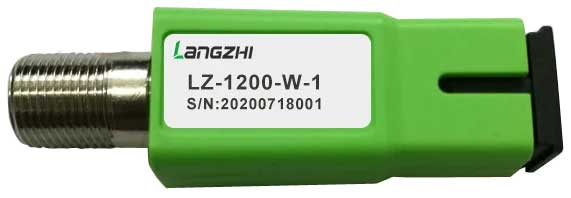

- Product: LZ-1200-W-1
- Availability: 1000
- Sales: 2
-
Promotion：
Up to $220.50 and up to 1 quantity discount $2.94 and give gifts
TV interface
optical receiver switch head this adapter can easily realize the direct transmission mode of optical fiber to F head. According to a novel and practical product developed in the whole cable TV industry, it does not need power and easily realizes the function of light transfer. The cable TV program is stable and high definition does not drop. It can realize one light turn and one light to two electricity. .
| LANGZHI CATV terminal small optical connector | |||
 |
|
||
| Product parameters | link performance | ||
| Input optical power(dBm) | -10～0 | C/N(dB) | ≥51 |
| Return Loss(dB) | >45 | C/CTB(dB) | ≥65 |
| Received light wavelength(nm) | 1310～1550 | C/CSO(dB) | ≥62 |
| Input optical interface | SC/APC | ||
| RF parameters | |||
| Frequency Range(MHz) | 47～1000 | RF output reflection(dB) | ≥16 |
| In-band flatness(dB) | 1.5 | RF output impedance(Ω) | 75 |
| Output level(dBuV) | 40 (-15dBm test) | MER(dB) | 30(-15dBm test) |
| 50 (-10dBm test) | 35(-10dBm test) | ||
| 60 (-5dBm test) | 37(-5dBm test) | ||
| 64 (-3dBm test) | 37(-3dBm test) | ||
| 70 ( 0dBm test) | 36(0dBm test) | ||
