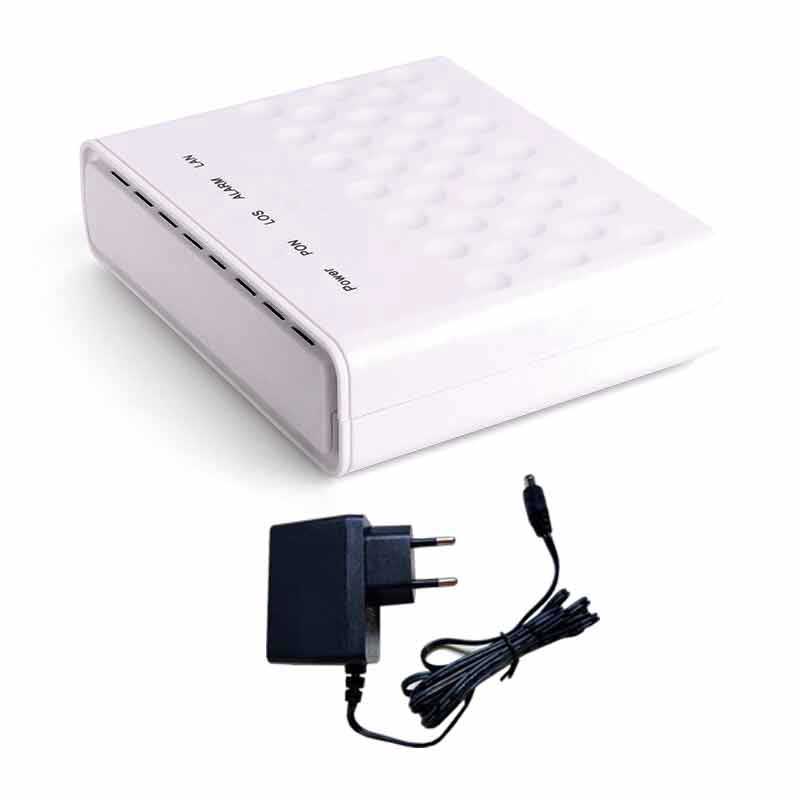

ZXHN F401 V6.0 EPON ONT | 1G Port | Carrier-Grade Fiber Terminal
[Carrier Custom] ZXHN F401 EPON ONT | 1G Port+EPON | TR-069 Remote Management | ISP-Grade Reliability
SKU
17841900177290
$6.86
Price drop reminder
Pre-tax: $6.86
- Brand: ZTE
- Product: ZXHN F401
- Availability: 10000
- Sales: 20
Light mouth
Annexes
Total
$6.86
Ship to
United States
The ZXHN F401 is an EPON optical network terminal (ONU) designed by ZTE specifically for Fiber to the Home (FTTH). Utilizing V6.0 technology, it provides exceptional performance and user experience. With its compact, intelligent design and energy-saving features, the F401 is not just a device, but an ideal choice for modern home and enterprise networks.
Key Features:
- Outstanding Performance: Based on international standards (such as IEEE 802.3ah, 802.3, etc.), the F401 supports up to 1.25Gbps in upstream and downstream transmission rates, providing seamless connectivity for internet surfing, HD video streaming, and online gaming, ensuring excellent user experience in high-bandwidth applications.
- Smart Design: The compact shape and modern design of the F401 allow it to blend effortlessly into various environments, whether mounted in a network cabinet or placed on a desktop. Its design focuses on aesthetics while considering user convenience.
- Energy Efficiency: With a power consumption of less than 4W and a 12V DC power supply, the F401 meets eco-friendly standards, helping users reduce electricity costs while contributing to environmental protection.
Technical Specifications:
- Network Interface: Equipped with 1 EPON interface (SC APC/UPC) for stable fiber connections.
- User Interface: Offers 1 adaptive 10/100/1000Base-T LAN interface (1GE) for fast data transmission.
- Advanced Features:
- 1000BASE-PX20+ optical interface for enhanced data transmission quality.
- MPCP (Multi-Point Control Protocol) for optimized bandwidth management.
- OAM and extended OAM for network reliability and maintainability.
- DBA (Dynamic Bandwidth Allocation) for automatic bandwidth adjustment based on real-time needs.
- MAC address and Logical ONU Identifier (LOID) authentication for enhanced network security.
- IGMP snooping and controllable multicast for optimized multimedia content transmission.
- Loop detection and Dying Gasp alarm for network stability.
- Supports SIP, H.248, and MGCP protocols for various voice services.
- Local WEB management and remote TR069 and OAM management features for real-time network monitoring and management.
Physical and Environmental Specifications:
- Power Consumption: < 4W, supporting eco-friendly design.
- Power Supply: 12V DC, compatible with a wide range of power environments.
- Operating Temperature: -5 to 45°C, suitable for various climatic conditions.
- Humidity: 5 to 95% relative humidity, ensuring stability in different environments.
- Dimensions: 130mm x 40mm x 103mm, lightweight and portable.
- Net Weight: 0.2kg, easy to install and move.
The ZXHN F401 is not only a high-performance EPON optical network terminal (ONU) but also an innovative representation of ZTE in the fiber connection field. With its outstanding technology, intelligent design, and eco-friendly philosophy, the F401 provides users with an exceptional network experience. Choose the ZXHN F401 and step into a seamless connectivity era!
