HG8310M | Xpon/Gpon/Epon | 1GE | ONT

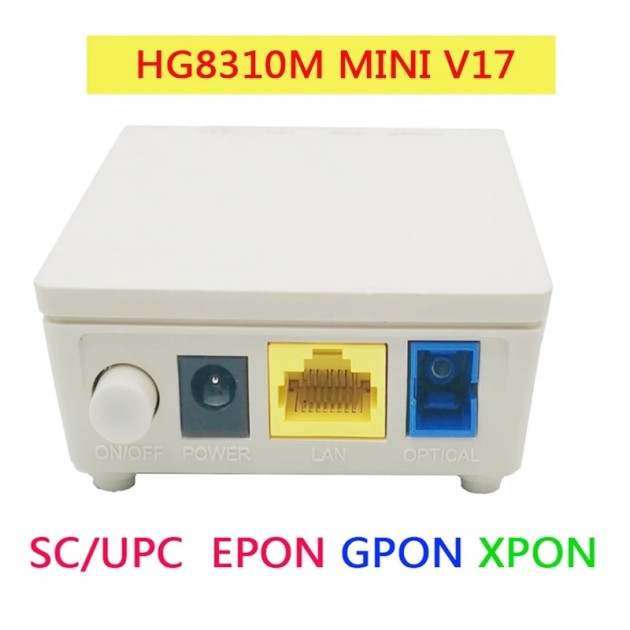

The EchoLife HG8310M is a renowned Optical Network Unit (ONU) terminal designed for FTTx networks. Its compact size combined with high efficiency makes it an ideal client device. It features one Gigabit Ethernet port and a blue GPON port with an SC/UPC connector. The small form factor allows for easy installation and setup at the customer’s site. The terminal offers high switching efficiency and very high throughput, meeting even the most demanding requirements. It is equipped with a 12 V 0.5 A power supply.

Main Features:

• GPON SC/UPC Port: Provides high-performance GPON connectivity.
• Gigabit Ethernet Port: 1 x 10/100/1000BaseTX (RJ45) port for high-speed internet access.
• Plug-and-Play: Easy setup with no complex configuration required.
• Built-in DHCP Server: Supports automatic IP address assignment.
• Built-in Dynamic DNS (DDNS) Support: Compatible with No-IP service.
• Port Forwarding, DMZ, and Firewall Functions: Enhances network security and flexibility.
• Quick and Easy Installation and Configuration: Saves time and increases efficiency.
• Remote Management, Configuration, and Diagnostics: Facilitates device management and maintenance.
• 12 V 0.5 A Power Supply and EU Adapter: Adapts to different power environments.

Specifications:

• Ethernet Port: 1 x 10/100/1000BaseTX (RJ45).
• PON Standard: GPON.
• Wireless Network Standards: None.
• USB Port: None.
• VoIP Ports: None.

GPON Specifications:

• Port Type: 1 x Class C+ port.
• Sensitive Reception: ~-27 dBm.
• Flexible Mapping: Between GEM and TCONT ports.
• Wavelength: US 1310 nm, DS 1490 nm.
• GPON Compatibility: Supports SN authentication or password as per G.984.3.
• Bidirectional FEC (Forward Error Correction): SR-DBA and NSR-DBA.

Ethernet Specifications:

• Speed: 10/100/1000BASE-T (RJ45).
• MAC Addresses: Supports MAC address learning.
• IPv6 Transparent Transmission: On Layer 2 level.
• QinQ VLAN: Supports QinQ VLAN configuration.

Connection Type:

• Fiber Connector: SC/UPC.

Physical Specifications:

• Dimensions: 82 x 90 x 27 mm.
• Weight: < 500 g.
• Permissible Operating Temperature: 0° to 40° C.
• Permissible Air Humidity: 5%-95% RH, non-condensing.

Power Specifications:

• Power Input: 100 - 240 V AC, 50 - 60 Hz.
• System Power Supply: 11 - 14 V DC, 0.5 A.
• Average Power Consumption: 2 W.
• Maximum Power Consumption: 3 W.

LED Indicators:

• POWER (Power)
• PON (Optical Network)
• FATE (Status)
• LAN (Local Area Network)

Package Includes:

• HG8310M
• 12 V, 0.5 A DC Power Supply

The EchoLife HG8310M delivers outstanding performance and reliability for FTTx networks with its compact design and advanced features. It efficiently meets high bandwidth demands, providing stable internet connectivity for both residential and small business users.
